Orchestrator故障切换失败

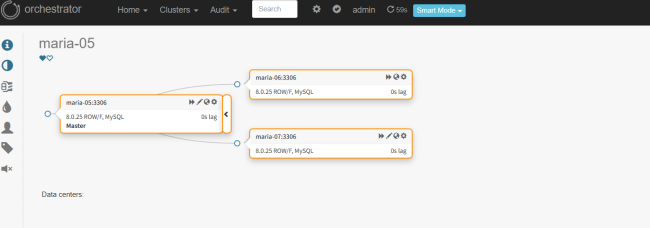

1. 故障发生之前，MySQL集群拓扑如下：

3.

2. 模拟主库宕机，关闭主实例

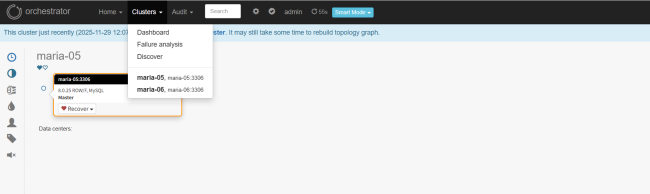

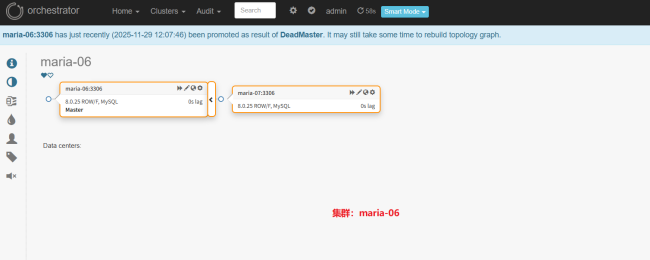

3. 页面上发现拓扑变化情况如下：

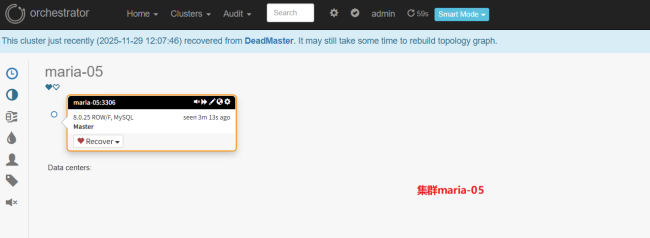

4. 出现两个MySQL集群maria-05和maria-06，与视频中演示的情况不同

5.到MySQL里验证复制关系：

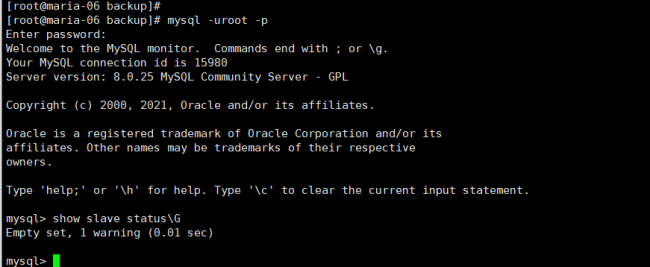

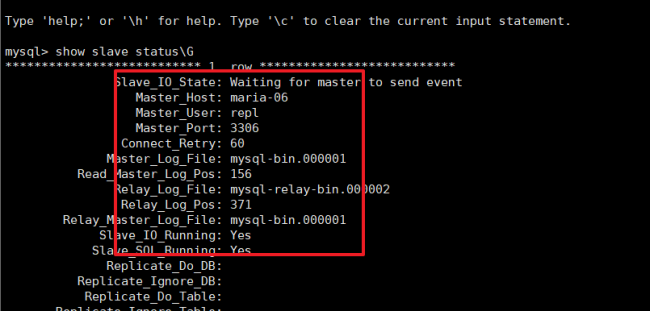

maria-06:

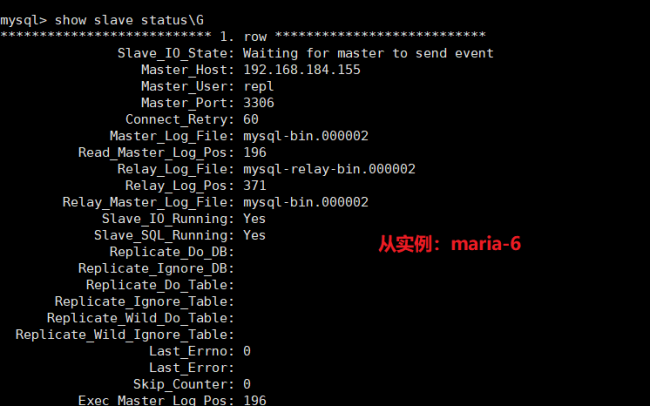

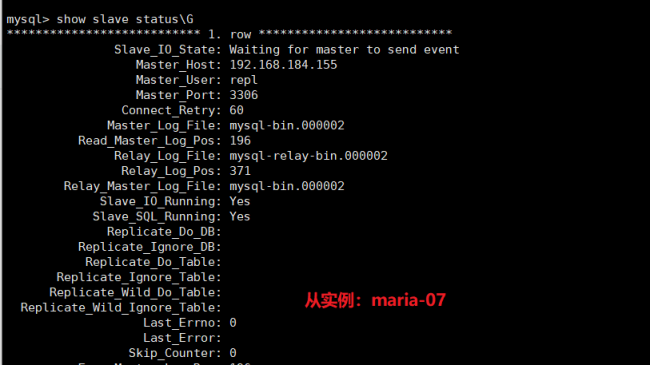

maria-07:

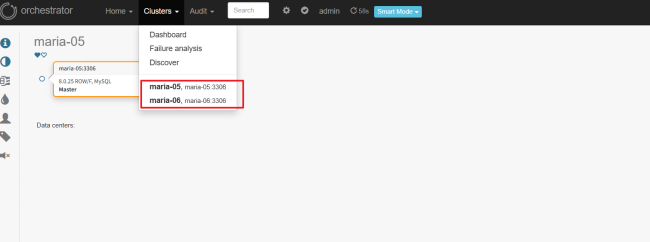

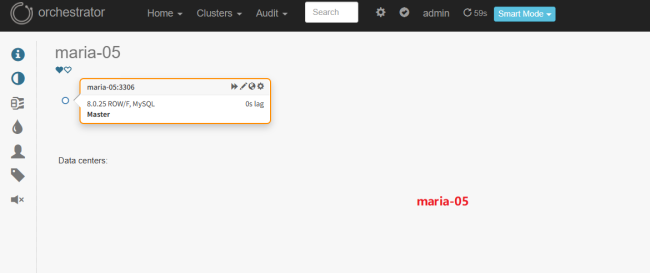

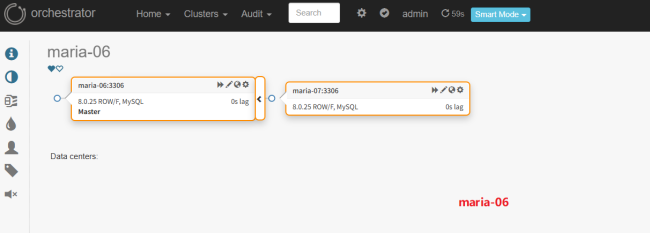

6. 恢复旧主实例，页面查看拓扑结构：

还是存在两个集群

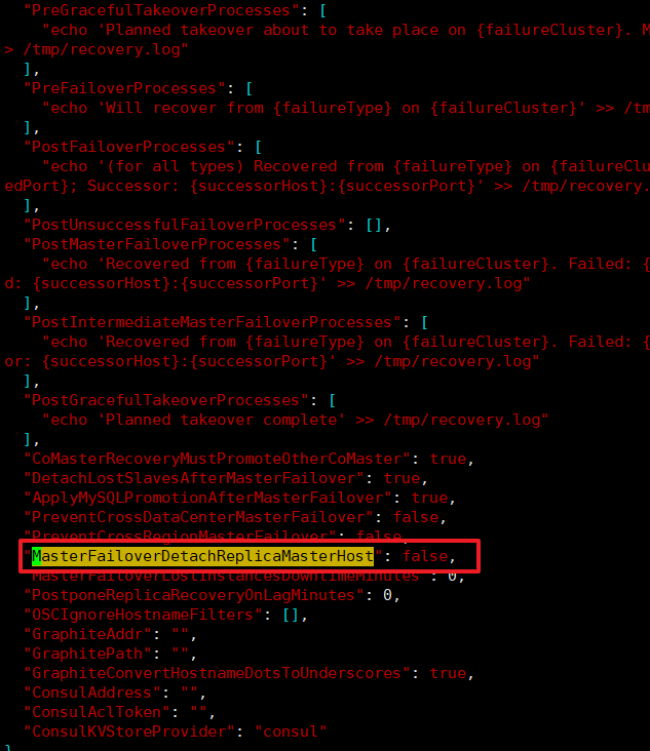

7. 查看Orchestrator参数MasterFailoverDetachReplicaMasterHost设置为false；

8. 问题：为什么会出现这种情况？要怎么排查问题？

9. 配置文件Orchestrator.conf.json内容如下：

{
  "Debug": true,
  "EnableSyslog": false,
  "ListenAddress": ":3000",
  "MySQLTopologyUser": "orc_client_user",
  "MySQLTopologyPassword": "xxxxxx",
  "MySQLTopologyCredentialsConfigFile": "",
  "MySQLTopologySSLPrivateKeyFile": "",
  "MySQLTopologySSLCertFile": "",
  "MySQLTopologySSLCAFile": "",
  "MySQLTopologySSLSkipVerify": true,
  "MySQLTopologyUseMutualTLS": false,
  "MySQLOrchestratorHost": "127.0.0.1",
  "MySQLOrchestratorPort": 3306,
  "MySQLOrchestratorDatabase": "orchestrator",
  "MySQLOrchestratorUser": "orc_server_user",
  "MySQLOrchestratorPassword": "xxxxx",
  "MySQLOrchestratorCredentialsConfigFile": "",
  "MySQLOrchestratorSSLPrivateKeyFile": "",
  "MySQLOrchestratorSSLCertFile": "",
  "MySQLOrchestratorSSLCAFile": "",
  "MySQLOrchestratorSSLSkipVerify": true,
  "MySQLOrchestratorUseMutualTLS": false,
  "MySQLConnectTimeoutSeconds": 1,
  "DefaultInstancePort": 3306,
  "DiscoverByShowSlaveHosts": true,
  "InstancePollSeconds": 5,
  "DiscoveryIgnoreReplicaHostnameFilters": [
    "a_host_i_want_to_ignore[.]example[.]com",
    ".*[.]ignore_all_hosts_from_this_domain[.]example[.]com",
    "a_host_with_extra_port_i_want_to_ignore[.]example[.]com:3307"
  ],
  "UnseenInstanceForgetHours": 240,
  "SnapshotTopologiesIntervalHours": 0,
  "InstanceBulkOperationsWaitTimeoutSeconds": 10,
  "HostnameResolveMethod": "default",
  "MySQLHostnameResolveMethod": "@@hostname",
  "SkipBinlogServerUnresolveCheck": true,
  "ExpiryHostnameResolvesMinutes": 60,
  "RejectHostnameResolvePattern": "",
  "ReasonableReplicationLagSeconds": 10,
  "ProblemIgnoreHostnameFilters": [],
  "VerifyReplicationFilters": false,
  "ReasonableMaintenanceReplicationLagSeconds": 20,
  "CandidateInstanceExpireMinutes": 60,
  "AuditLogFile": "",
  "AuditToSyslog": false,
  "RemoveTextFromHostnameDisplay": ".mydomain.com:3306",
  "ReadOnly": false,
  "AuthenticationMethod": "basic",
  "HTTPAuthUser": "admin",
  "HTTPAuthPassword": "Nimxxxxx",
  "RaftEnabled":true,
  "RaftDataDir":"/usr/local/orchestrator/raftdata",
  "RaftBind":"192.168.184.151",
  "DefaultRaftPort":10008,
  "RaftNodes":[
  "192.168.184.151",
  "192.168.184.152",
  "192.168.184.153"
  ],
  "AuthUserHeader": "",
  "PowerAuthUsers": [
    "*"
  ],
  "ClusterNameToAlias": {
    "127.0.0.1": "test suite"
  },
  "ReplicationLagQuery": "",
  "DetectClusterAliasQuery": "SELECT SUBSTRING_INDEX(@@hostname, '.', 1)",
  "DetectClusterDomainQuery": "",
  "DetectInstanceAliasQuery": "",
  "DetectPromotionRuleQuery": "",
  "DataCenterPattern": "[.]([^.]+)[.][^.]+[.]mydomain[.]com",
  "PhysicalEnvironmentPattern": "[.]([^.]+[.][^.]+)[.]mydomain[.]com",
  "PromotionIgnoreHostnameFilters": [],
  "DetectSemiSyncEnforcedQuery": "",
  "ServeAgentsHttp": false,
  "AgentsServerPort": ":3001",
  "AgentsUseSSL": false,
  "AgentsUseMutualTLS": false,
  "AgentSSLSkipVerify": false,
  "AgentSSLPrivateKeyFile": "",
  "AgentSSLCertFile": "",
  "AgentSSLCAFile": "",
  "AgentSSLValidOUs": [],
  "UseSSL": false,
  "UseMutualTLS": false,
  "SSLSkipVerify": false,
  "SSLPrivateKeyFile": "",
  "SSLCertFile": "",
  "SSLCAFile": "",
  "SSLValidOUs": [],
  "URLPrefix": "",
  "StatusEndpoint": "/api/status",
  "StatusSimpleHealth": true,
  "StatusOUVerify": false,
  "AgentPollMinutes": 60,
  "UnseenAgentForgetHours": 6,
  "StaleSeedFailMinutes": 60,
  "SeedAcceptableBytesDiff": 8192,
  "PseudoGTIDPattern": "",
  "PseudoGTIDPatternIsFixedSubstring": false,
  "PseudoGTIDMonotonicHint": "asc:",
  "DetectPseudoGTIDQuery": "",
  "BinlogEventsChunkSize": 10000,
  "SkipBinlogEventsContaining": [],
  "ReduceReplicationAnalysisCount": true,
  "FailureDetectionPeriodBlockMinutes": 60,
  "FailMasterPromotionOnLagMinutes": 0,
  "RecoveryPeriodBlockSeconds": 60,
  "RecoveryIgnoreHostnameFilters": [],
  "RecoverMasterClusterFilters": [
    "*"
  ],
  "RecoverIntermediateMasterClusterFilters": [
    "*"
  ],
  "OnFailureDetectionProcesses": [
    "echo 'Detected {failureType} on {failureCluster}. Affected replicas: {countSlaves}' >> /tmp/recovery.log"
  ],
  "PreGracefulTakeoverProcesses": [
    "echo 'Planned takeover about to take place on {failureCluster}. Master will switch to read_only' >> /tmp/recovery.log"
  ],
  "PreFailoverProcesses": [
    "echo 'Will recover from {failureType} on {failureCluster}' >> /tmp/recovery.log"
  ],
  "PostFailoverProcesses": [
    "echo '(for all types) Recovered from {failureType} on {failureCluster}. Failed: {failedHost}:{failedPort}; Successor: {successorHost}:{successorPort}' >> /tmp/recovery.log"
  ],
  "PostUnsuccessfulFailoverProcesses": [],
  "PostMasterFailoverProcesses": [
    "echo 'Recovered from {failureType} on {failureCluster}. Failed: {failedHost}:{failedPort}; Promoted: {successorHost}:{successorPort}' >> /tmp/recovery.log"
  ],
  "PostIntermediateMasterFailoverProcesses": [
    "echo 'Recovered from {failureType} on {failureCluster}. Failed: {failedHost}:{failedPort}; Successor: {successorHost}:{successorPort}' >> /tmp/recovery.log"
  ],
  "PostGracefulTakeoverProcesses": [
    "echo 'Planned takeover complete' >> /tmp/recovery.log"
  ],
  "CoMasterRecoveryMustPromoteOtherCoMaster": true,
  "DetachLostSlavesAfterMasterFailover": true,
  "ApplyMySQLPromotionAfterMasterFailover": true,
  "PreventCrossDataCenterMasterFailover": false,
  "PreventCrossRegionMasterFailover": false,
  "MasterFailoverDetachReplicaMasterHost": false,
  "MasterFailoverLostInstancesDowntimeMinutes": 0,
  "PostponeReplicaRecoveryOnLagMinutes": 0,
  "OSCIgnoreHostnameFilters": [],
  "GraphiteAddr": "",
  "GraphitePath": "",
  "GraphiteConvertHostnameDotsToUnderscores": true,
  "ConsulAddress": "",
  "ConsulAclToken": "",
  "ConsulKVStoreProvider": "consul"
}
